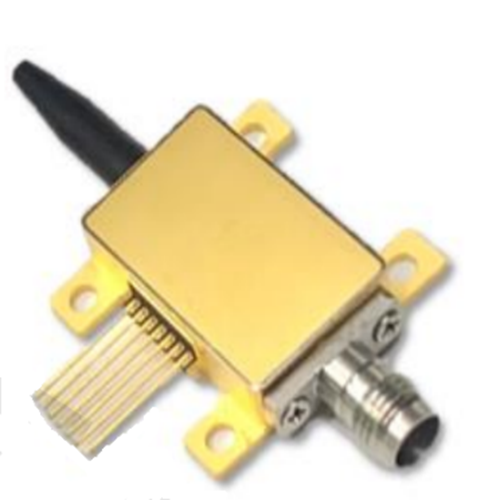

Rof EOM modulator 20/40GHz Phase Modulator thin film lithium niobate modulator
1999 USD ($)/Quintal
Product Details:
X
Rof EOM modulator 20/40GHz Phase Modulator thin film lithium niobate modulator Price And Quantity
- 1999 USD ($)/Quintal
- 1999.00 - 2999.00 USD ($)/Quintal
- 1 Quintal
Product Description
The ROF Thin film lithium niobate phase modulator is a kind of high performance electro-optical conversion device. The product is packaged by high precision coupling technology to achieve ultra-high electro-optical conversion efficiency. Compared with the traditional lithium niobate crystal modulator, this product has the characteristics of low half-wave voltage, high stability and small device size, and can be widely used in digital optical communication, microwave photonics, backbone communication networks and communication research projects.
|
Category |
Argument |
Sym | Uni | Aointer | |
|
Optical performance (@25C)
|
Operating wavelength (*) |
λ | nm | 1550 | |
|
Optical return loss
|
ORL | dB | ‰ -27 | ||
|
Optical insertion loss (*) |
IL | dB | MAX：5.5
Typ：4.5 |
||
|
Electrical properties (@25C)
|
3 dB electro-optical bandwidth (from 2 GHz |
S21 |
GHz |
X1: 2 | X1: 4 |
| MIN：18
Typ：20 |
MIN：36
Typ：40 |
||||
|
Rf half wave voltage (@50 kHz)
|
VÏ | V | MAX：3.5
Typ：3.0 |
||
|
Rf return loss (2 GHz to 40 GHz)
|
S11 | dB | ‰ -10 | ||
|
Working condition
|
Operating temperature |
TO | C | -2070 | |
